Economy Ryzer

Economy Ryzer

Packaging Information

Solo Ryzer

Solo Ryzer

Packaging Information

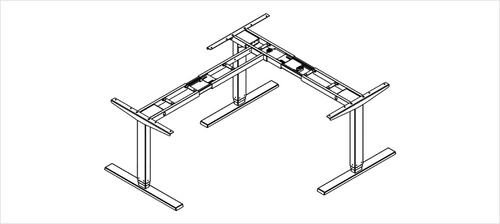

Corner Ryzer

Corner Ryzer

Packaging Information

V Ryzer

V Ryzer

Packaging Information

Packaging
Information

Package Quantity

Two boxes will be included in your delivery containing your desk frame components, tabletop, remote, and grommet. If you have added extra accessories to your order, these will come in separate boxes.

Package Size

The exact dimensions of our packaging are outlined below.
Our packaging sizes differ based on the size of tabletop you have purchased.

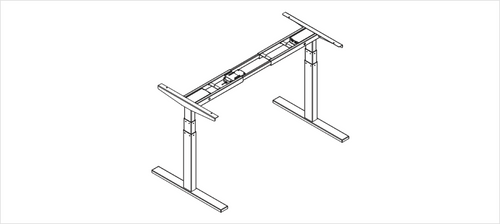

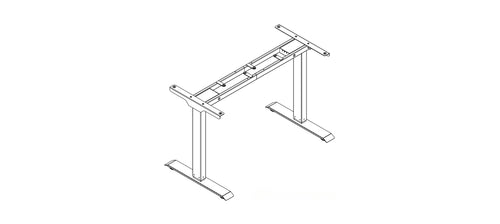

Frame
Length Width Height
42.3” 10.63” 6.1”

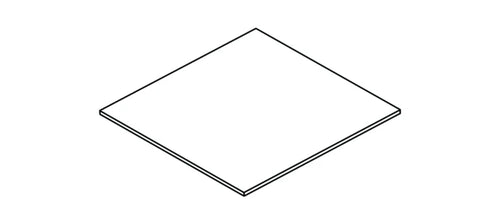

Tabletop
Size Length Width Height
42” x 30” 46.5” 34.5” 2.75”
48” x 30 52” 34.5” 2.75”
60” x 30” 64.25” 34.5” 2.75”

Assembly Guide

We want to make your standing desk assembly experience seamless and hassle-free! Therefore, we have created two guides that you can follow throughout this process: our assembly video and, our step-by-step assembly guide.

Video Assembly Guide

Watch us Assemble in 20 minutes

( long video)

Manual Assembly Guide

You can find the full product manual here that breaks down each part involved in this assembly, alongside visuals for assembly and fault treatments.

Download PDF
01

Attach the Pedestals

  • 1. Unpack the box and lay the components out in front of you.
  • 2. Locate your columns and pedestals. Install each pedestal onto the underside of each frame leg using the included 5x5 Allen wrench, and secure using four machine screws (M6x30) for each pedestal.
02

Install the Supporting Beam

  • 3. Loosen the screws on the supporting beam using the 4x4 Allen wrench to extend it. Adjust the beam size
  • 4. Attach the supporting beam onto the top ends of the frame legs using the 5x5 Allen Wrench and two machine screws (M8x50) for each column.
03

Install the Supporting Plate

  • 5. Insert gaskets onto the supporting beam and onto the supporting plate locations.
  • 6. Slide the supporting plates to the sides of the columns and attach using the 5x5 Allen Wrench and two machine screws (M6x16). Repeat this process for the other leg
  • 7. Do not tighten fully until you’re attaching your desk frame to the tabletop.
04

Attach the Power Adapter and Tabletop

  • 8. Flip the frame over and onto the underside of your tabletop. Tilt the frame to install the adaptor holder onto the supporting beam.
  • 9. Attach the desk frame to the tabletop using eight machine screws (ST4.2x19) We recommend leaving no more than 7.87” of the tabletop extending beyond the desk frame. You may also want to ensure the desk woodscrews are not too long for your tabletop.
  • 10. If you have a Progressive Desk tabletop, use the included hardware with the tabletop and line up the frame with the pre-drilled holes.
05

Attach Your Remote

  • 11. Securely attach the remote directly to the tabletop using three machine screws (ST4.2x19) to ensure the features work correctly. Your remote should be attached on the side closest to the motor.
06

Install the Transmission Rod

  • 12. Install the transmission rod by hand-loosening the adjustment knot at the end of the rod before inserting the exposed end it into the supporting frame. Align the other end of the rod to connect with the motor.
  • 13. Hand-tighten the transmission rod before further tightening it with the included wrench. Tighten the nut on the motor end of the transmission rod using a 2.5x2.5 Allen wrench.
  • 14. Ensure all hardware is secure on the supporting beam and supporting plate by using the 4x4 and 5x5 Allen wrenches.
07

Secure the Supporting Beam

  • 15. Tighten the screws on the supporting beam with a 4x4 Allen wrench, and the supporting plate with a 5x5 Allen wrench.
08

Install the Baffle and Power Adapter

  • 16. Install the baffle to the supporting beam and secure using four machine screws (M4x6).
  • 17. Slide the power adapter into the adaptor holder and then lock with a 2.5x2.5 Allen wrench.
09

Connect All Cables to the Adaptor

  • 18. Connect the switch cord to the DC port and connect the motor cord to the M1 port. Lastly, connect the power cable to the power adapter
  • 19. Use the included adhesive cable ties to organize cables against the tabletop.
10

Complete the Reset Procedure

  • 20. We recommend having two people to flip over the desk. Tilt the desk upright while supporting the frame.
  • 21. For the final step before you can start using your standing desk, you must complete the reset procedure using the hand remote. Ensure there are no objects undeath the desk during this procedure.
  • 22. Simultaneously hold the 3 and 4 buttons for 5 seconds to enter this mode. After entering the reset function, the display will show “RST”. Press and hold the down button to reset the desk. When the desk descends to the lowest position, it will raise slightly and run until the screen says “bot”. At that point, the reset has been completed.

You are now ready to sit and stand at your very own Progressive Desk!

Packaging
Information

Package Quantity

Two boxes will be included in your delivery containing your desk frame components, tabletop, remote, and grommet. If you have added extra accessories to your order, these will come in separate boxes.

Package Size

The exact dimensions of our packaging are outlined below. Our packaging sizes differ based on the size of tabletop you have purchased.

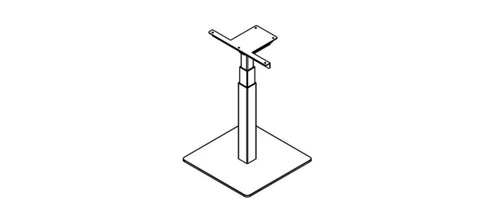

Frame
Length Width Height
41” 10.5” 9.25”
Tabletop
Size Length Width Height
48” x 30” 52” 34.5” 2.75”
60” x 30 64.25” 34.5” 2.75”
72” x 30” 76.5” 34.5” 2.75”

Assembly Guide

We want to make your standing desk assembly experience seamless and hassle-free! Therefore, we have created two guides that you can follow throughout this process: our assembly video and, our step-by-step assembly guide.

Video Assembly Guide

Watch us Assemble in 20 minutes

( long video)

Manual Assembly Guide

You can find the full product manual here that breaks down each part involved in this assembly, alongside visuals for assembly and fault treatments.

Download PDF

You are now ready to sit and stand at your very own Progressive Desk!

Packaging
Information

Package Quantity

If you opt for the one-piece tabletop, two boxes will be included in your delivery. If you opt for the two-tabletop configuration, three boxes will be included in your delivery. These boxes will contain your desk frame components, tabletops (one box each), remote, and grommet. If you have added extra accessories to your order, these will come in separate boxes.

Package Size

The exact dimensions of our packaging are outlined below. Our packaging sizes differ based on the size of tabletop you have purchased.

Frame
Length Width Height
41” 10.5” 9.25”

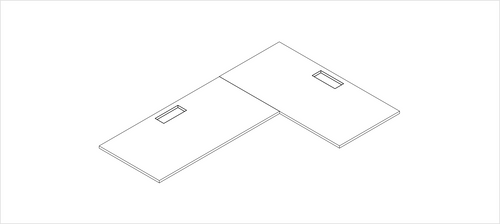

Tabletop
Size Length Width Height
59” x 59” 63.5” 34.5” 2.5”
78” x 60” 64.25” 34.5” 2.75”
78” x 60” 52” 34.5” 2.75”
78” x 48” 52” 34.5” 2.75”
78” x 48” 52” 34.5” 2.75”
90” x 60” 64.25” 34.5” 2.75”
90” x 60” 64.25” 34.5” 2.75”

Assembly Guide

We want to make your standing desk assembly experience seamless and hassle-free! Therefore, we have created two guides that you can follow throughout this process: our assembly video and, our step-by-step assembly guide.

Video Assembly Guide

Watch us Assemble in 20 minutes

( long video)

Manual Assembly Guide

You can find the full product manual here that breaks down each part involved in this assembly, alongside visuals for assembly and fault treatments.

Download PDF

You are now ready to sit and stand at your very own Progressive Desk!

Packaging
Information

Package Quantity

Two boxes will be included in your delivery containing your desk frame components, tabletop, remote, and grommet. If you have added extra accessories to your order, these will come in separate boxes.

Package Size

The exact dimensions of our packaging are outlined below. Our packaging sizes differ based on the size of tabletop you have purchased.

Frame
Length Width Height
47.75” 15.25” 9.75”
Tabletop
Size Length Width Height
55” x 96” 101” 56.25” 3”

Assembly Guide

We want to make your standing desk assembly experience seamless and hassle-free! Therefore, we have created two guides that you can follow throughout this process: our assembly video and, our step-by-step assembly guide.

Video Assembly Guide

Watch us Assemble in 20 minutes

( long video)

Manual Assembly Guide

You can find the full product manual here that breaks down each part involved in this assembly, alongside visuals for assembly and fault treatments.

Download PDF

You are now ready to sit and stand at your very own Progressive Desk!
